Plano Concave Cylindrical Lens

We have two kinds of Cylindrical Lenses, the first is Plano Convex cylindrical lenses which are useful for line imaging or uni-axial magnification in a wide range of applications. These lenses are manufactured from UV transmitting Fused Silica and are supplied uncoated.The second is Plano Concave cylindrical lenses which provide uni-axial negative imaging for anamorphic beam expansion and a wide range of applications. These lenses are manufactured from UV transmitting Fused Silica and are supplied uncoated. Anti-reflection coatings are available as listed earlier in this section.

Material:

Fused Silica or BK7

Design Wavelength:

546.1nm, n=1.46008

Diameter Tolerance:

+0.0/-0.1mm

Paraxial Focal Length:

±2%

Centration:

3 arcmin

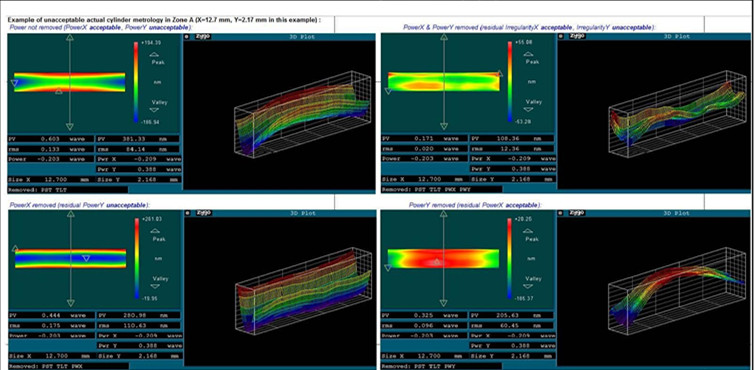

Surface Figure :

/4 @ 632.8 nm

Surface Quality:

20/10

Clear Aperture:

>80%

Bevel:

<0.25mm X 45°

Coating:

AR coating or HR coating




Item#

X x Y(mm)

f(mm)

R(mm)

Tc

Te

Fb

CLV1-001

10.0x10.0

-12.7

6.54

2.0

4.3

-14

CLV1-002

20.0x10.0

-12.7

6.54

2.0

4.3

-14

CLV1-003

10.0x10.0

-25.0

12.87

2.0

3.0

-26.3

CLV1-004

20.0x10.0

-25.0

12.87

2.0

3.0

-26.3

CLV1-005

20.0x20.0

-50.0

25.73

2.0

4.0

-51.3

CLV1-006

20.0x20.0

-75.0

38.6

2.0

3.3

-76.3

CLV1-101

20.0x20.0

-100.0

51.47

3.0

4.0

-102.0

CLV1-102

20.0x20.0

-150.0

77.2

3.0

3.7

-152.0

CLV1-103

20.0x20.0

-200.0

102.93

3.0

3.5

-202.0

CLV1-104

20.0x20.0

-250.0

128.67

3.0

3.4

-252.0

CLV1-105

20.0x20.0

-500.0

257.33

3.0

3.2

-502.0
