Plano Convex Cylindrical Lens

We have two kinds of Cylindrical Lenses, the first is Plano Convex cylindrical lenses which are useful for line imaging or uni-axial magnification in a wide range of applications. These lenses are manufactured from UV transmitting Fused Silica and are supplied uncoated.The second is Plano Concave cylindrical lenses which provide uni-axial negative imaging for anamorphic beam expansion and a wide range of applications. These lenses are manufactured from UV transmitting Fused Silica and are supplied uncoated. Anti-reflection coatings are available as listed earlier in this section.

Material:

Fused Silica or BK7

Design Wavelength:

546.1nm, n=1.46008

Diameter Tolerance:

+0.0/-0.1mm

Paraxial Focal Length:

±2%

Centration:

3 arcmin

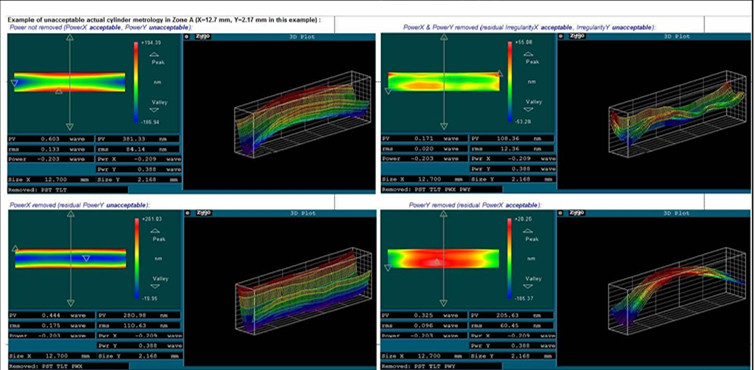

Surface Figure :

/4 @ 632.8 nm

Surface Quality:

20/10

Clear Aperture:

>80%

Bevel:

<0.25mm X 45°

Coating:

AR coating or HR coating







Item#

X x Y(mm)

f(mm)

R(mm)

Tc

Te

Fb

CLX1-101

10.0x10.0

12.7

6.546

4.32

2.0

9.86

CLX1-102

20.0x10.0

12.7

6.546

4.32

2.0

9.86

CLX1-103

10.0x10.0

20.0

10.304

3.29

2.0

17.83

CLX1-104

20.0x10.0

20.0

10.304

3.29

2.0

17.83

CLX1-105

10.0x10.0

25.0

12.882

3.01

2.0

23.02

CLX1-106

20.0x10.0

25.0

12.882

3.01

2.0

23.02

CLX1-201

20.0x20.0

50.0

25.76

4.02

2.0

47.36

CLX1-202

20.0x20.0

75.0

38.64

3.32

2.0

72.83

CLX1-203

20.0x20.0

100.0

51.52

3.98

3.0

97.40

CLX1-204

20.0x20.0

150.0

77.27

3.65

3.0

147.60

CLX1-205

20.0x20.0

200.0

103.04

3.49

3.0

197.74

CLX1-206

20.0x20.0

250.0

128.82

3.39

3.0

247.86

CLX1-207

20.0x20.0

300.0

154.53

3.32

3.0

297.82

CLX1-208

20.0x20.0

500.0

257.5

3.19

3.0

497.81
